AI concept · made to order in Riga
Pyramid wine rack with diamond bins

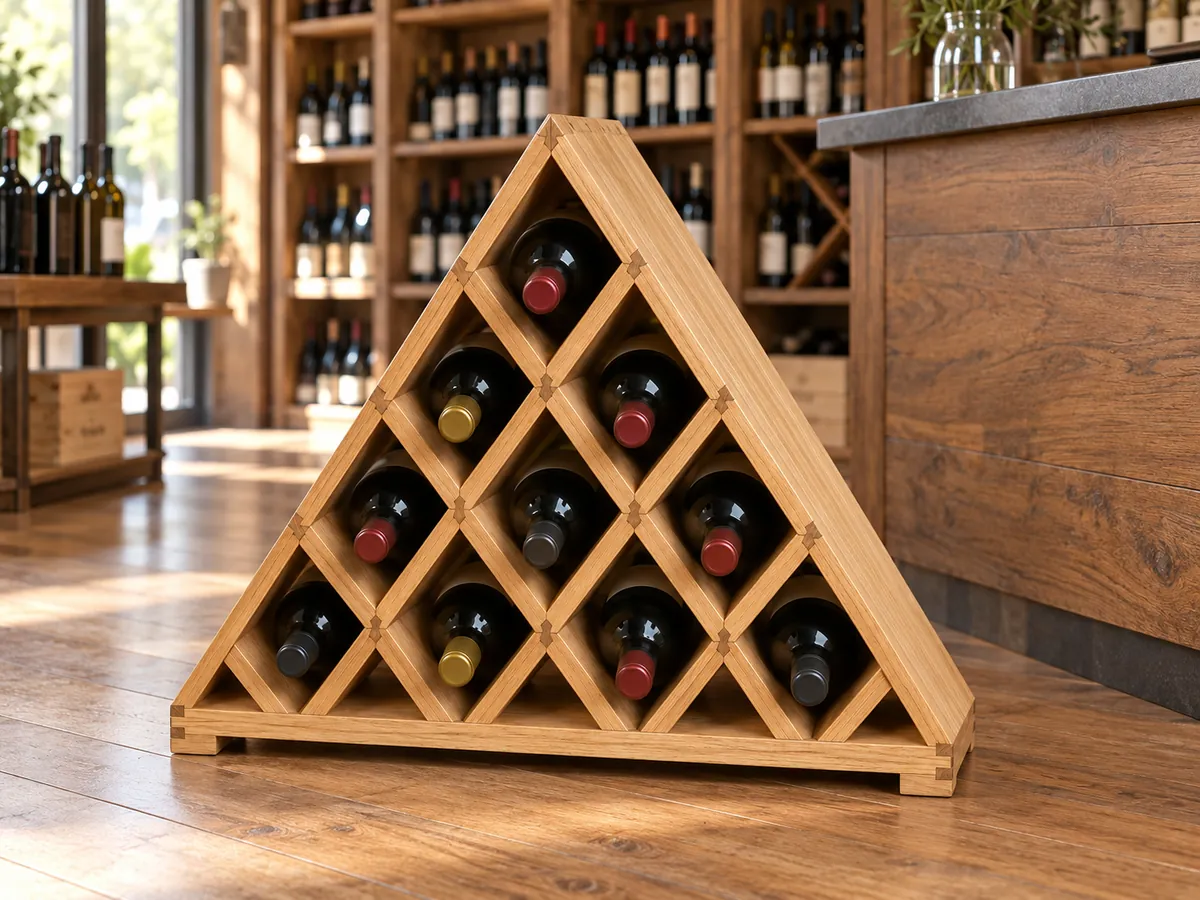

AI concept for a free-standing oak pyramid wine rack with ten diamond cells, one bottle in each. For wine shops, tasting rooms and home cellars; our workshop in Riga builds it to order, with the cells sized to your bottles and the rack to your workshop. Our interiors page shows a real pyramid rack we built.
The idea images on this page are AI concepts — design ideas, not photos of finished work; final construction and scope are agreed for your project. The photo marked “Real work” is from our workshop.
- Included:
- The free-standing rack with diamond cells sized to your bottles
- Optional:
- More tiers, a flat top, a finished back, your logo engraved
- You supply:
- Bottle shapes, floor space, door and stair widths, your logo file
Real work from our workshop
This pyramid rack was built on our bench for a wine boutique in Riga, together with lit bottle walls and an under-stair rack.
Decisions to make
Cell size and bottle count
The concept shows ten diamond cells, one bottle each. Bordeaux, Burgundy, Champagne and magnum bottles each need a different opening, and the rack's depth follows the longest bottle. More tiers raise the count; larger cells holding several bottles of one wine are an option for stock.
Back, base and the way in
A free-standing rack is seen from every side, so decide whether the back is finished or open. A full rack is heavy and floors are rarely level, so we agree the base with you. Send door and stair widths; one piece or sections, and any wall or floor fixing, are confirmed per project.
Height, footprint and the top
Floor space sets the width of the bottom row, and so how many tiers fit. Height decides whether customers reach the top cell without a step. The top can end in a point, as in the concept, or in a flat surface for a featured bottle.

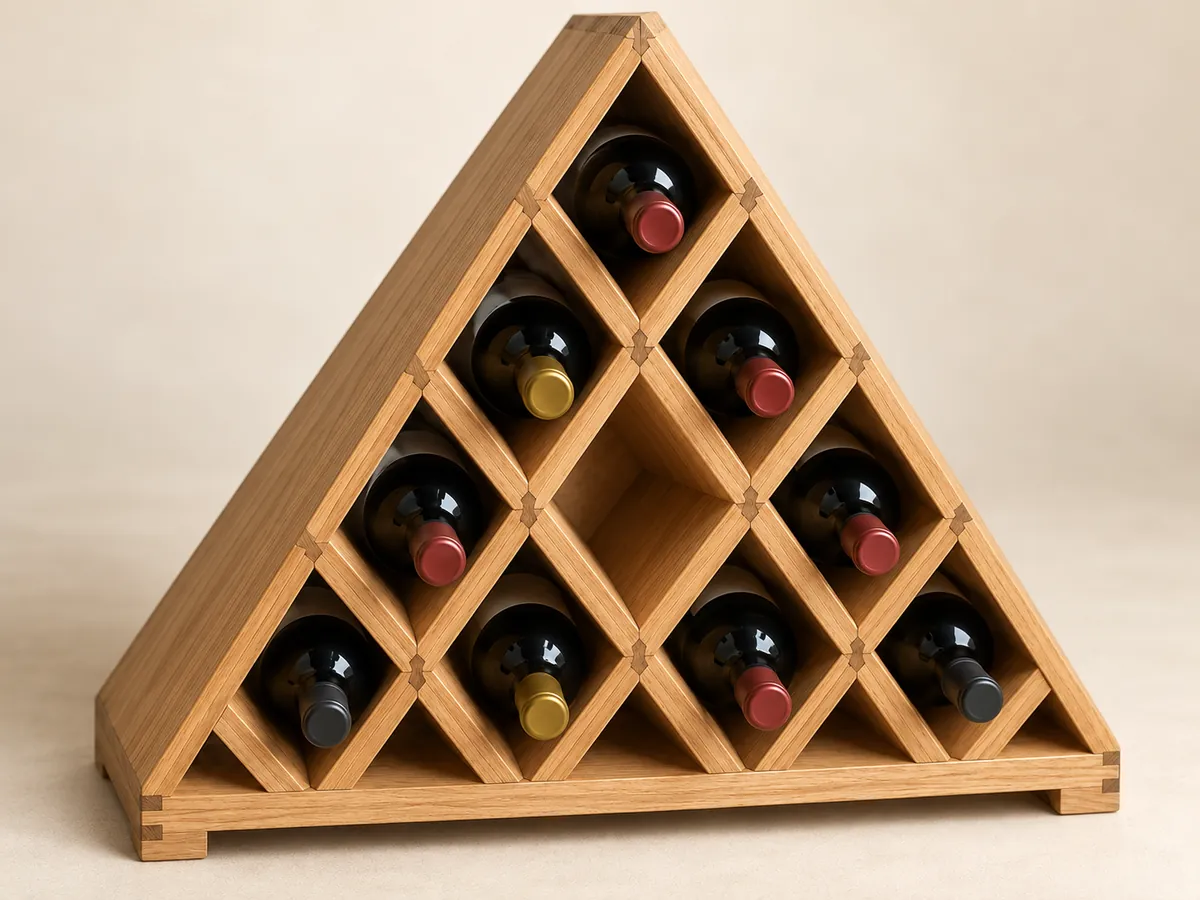

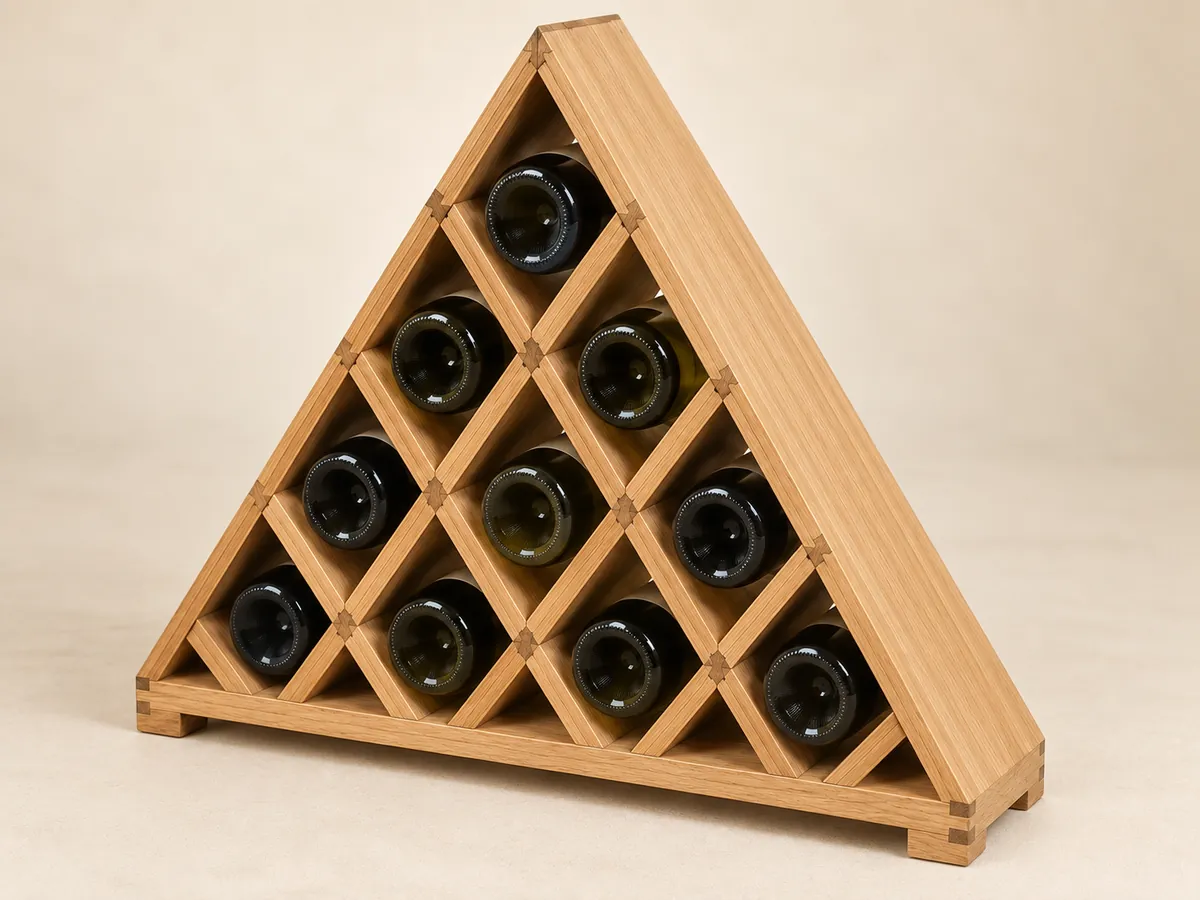

More views of this idea
The same idea from other angles and in other options — AI concepts, to help you picture the details.
Suggested uses
Wine shop floor
Standing free near the entrance or the till, where wall shelving cannot go, the rack is the first display customers walk past: a natural place for a featured producer or new arrivals.
Tasting room or restaurant
The rack keeps the list on show, not in a store room; staff pick bottles by grape or region, with the cells sized to the bottles you pour.
Home cellar or dining room
Built to the height you have, it stands at the end of a cellar aisle, or in a dining room, where it reads as furniture rather than storage.
Importer ranges, one wine per cell
An importer gives each wine in its range its own cell, so a stockist's rack is sorted by producer and an empty cell shows what needs restocking.
Materials and options
Materials and finishes
- Oak (as in the concept)Hard and stable, suited to a rack carrying a lot of glass, but one of the heaviest to move.
- AshPaler than oak and about as hard, for a bright shop; its open grain picks up dirt at the cell edges, so we agree the finish with you.
- WalnutDark and fine-grained, so the rack reads as furniture, though dark cells are harder to see into in a dim cellar.
- Other speciesBirch and maple are also available and hard enough for the cell edges; black alder is softer. A painted rack is possible. Pine dents where bottles slide in and out.
Personalisation
Your logo engraved on the front of the base, where it stays visible when the cells are full; a monogram suits a private piece. The concept shows plain oak, and the mark's position and size are agreed on the drawing.
From request to production
- Your briefTell us how you will use it, how many you need and whether you want a logo.
- Drawing and 3D reviewReview the design from each side on a private page.
- Quote and approvalPrice and scope agreed before anything is made.
- Prototype or productionFor a series, one prototype first; a single piece is made once approved.
We draw the rack from your bottle list, floor measurements and door widths, so the cell grid, depth, base and back are agreed before any wood is cut, with the depth shown against your longest bottle.
What to send us for a quote
- Bottle shapes you stock: Bordeaux, Burgundy, Champagne or magnums
- Roughly how many bottles the rack should hold
- Floor space, ceiling height, and whether it is seen from one side or all
- Door and stair widths on the way in, especially for a cellar
- A pointed top or a flat one for a featured bottle
- Preferred wood, your logo file, and how many racks
Request a quote for this idea
Tell us how you will use it, the quantity and any changes you need. We reply personally to every request.
Questions
How many bottles does a pyramid wine rack hold?
The concept holds ten, one in each diamond cell. The count rises with more tiers or a wider footprint, and with larger cells that take several bottles of one wine. Tell us how many bottles you want on show and which shapes, and we draw the grid to match.
Will a free-standing pyramid wine rack stay stable when full?
A pyramid's wide base keeps most of the weight low, but a rack full of glass is heavy. We agree the footprint and base for the load and your workshop; fill it from the bottom up and empty it from the top down. Whether it also needs fixing to a wall or floor is confirmed per project.
Have you built a pyramid wine rack before?
Yes. Our interiors page shows a pyramid rack taking shape on our workshop bench for a wine boutique fit-out in Riga, and a finished diamond-bin rack before it left the workshop. The image on this page is an AI concept, not a photo of those racks.
