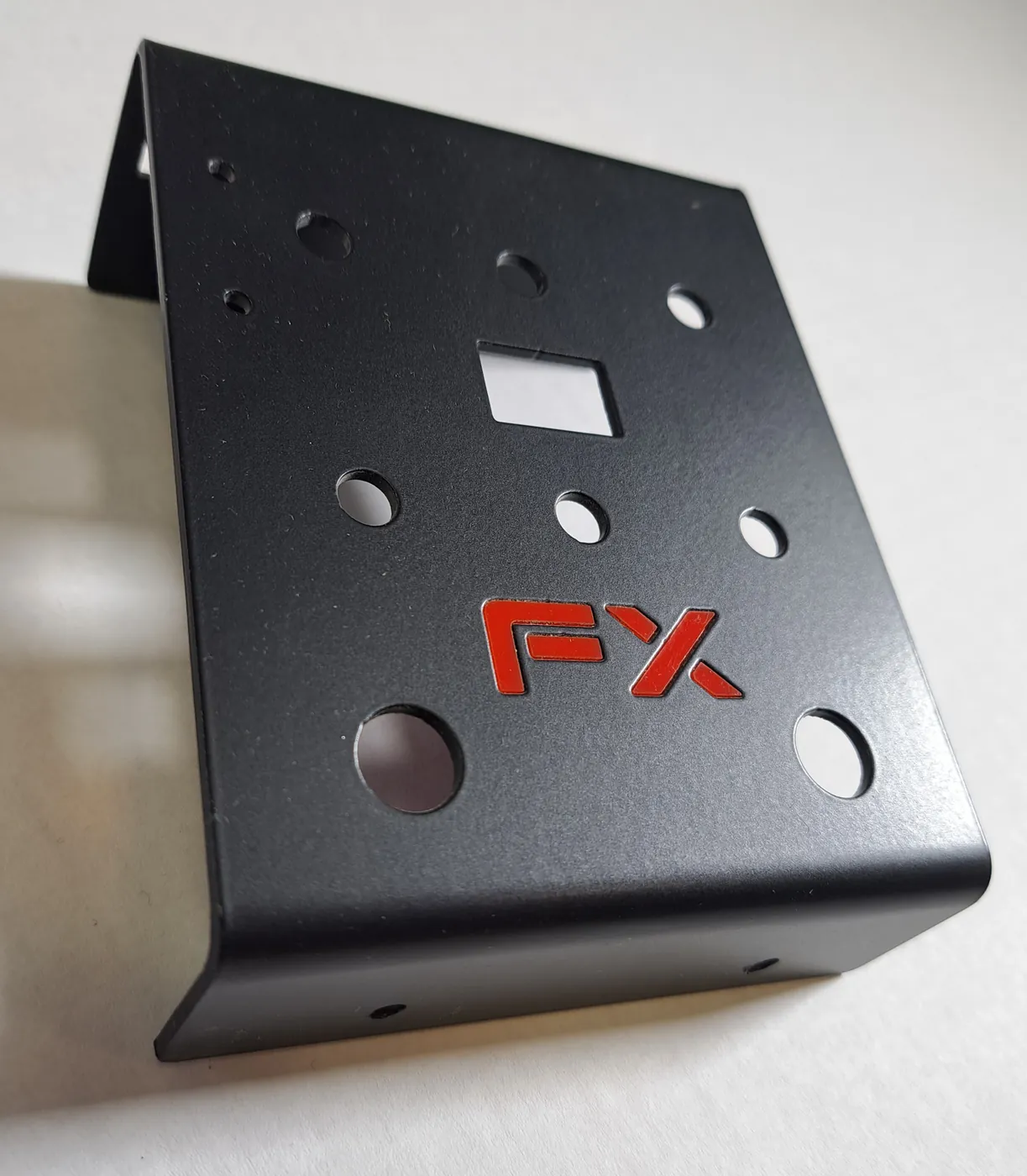

Bent black metal bracket with cut-outs and a red inlay
A black metal bracket bent into a channel, with round holes of several sizes, rectangular cut-outs and a red inlay on its face, for engineers and manufacturers who need brackets, mounting plates and small metal parts made to their drawing.
- Kind
- Bent bracket
- Material
- Metal, matte black finish
- Features
- Round holes, rectangular cut-outs, red inlay
- Made
- In our workshop in Riga
About this piece
The bracket is a flat face with a flange bent down along two opposite edges, so it stands like a low bridge. Its face carries round holes of several sizes, a rectangular cut-out in the middle and a red logo inlay near the front edge. A second rectangular opening shows in the rear flange, the front flange has two small holes, and the whole part has an even, matte black finish.
Brackets like this hold switches, connectors, displays and boards inside machines and enclosures, or fix a panel to a frame. The holes and cut-outs set where each part sits, and the bent flanges stiffen the bracket and give it something to fix through.
Parts like this begin as a drawing or a 3D file with every hole, cut-out and bend marked. You check the drawn part in 3D on a private page, the quote is agreed, and the outline and holes are laser-cut, with the bends made to your drawing. A logo or marking can be engraved, and a painted finish in the colour you choose can be sprayed in our own spray room. One bracket is fine, and so is a series that starts with a prototype.
What to send us for a quote
- A drawing, a 3D file or a sample of the part
- The material and thickness, if you know them
- Where the part will be used
- How many you need
No minimum order: one piece, a prototype or a full series.
How an order works
- Your briefSend the artwork, a drawing or a photo, the size and how many you need.
- Drawing and 3D reviewWe draw it to scale, and you check the design from each side on a private page.
- Quote and approvalThe cost and the scope are agreed before anything is made.
- Made in RigaWe make and assemble your piece in our Riga workshop. For a series, one prototype comes first.
Questions
Can you make a bracket to our drawing, holes and all?
Yes. Send a drawing or a 3D file with the holes, cut-outs and bends marked. We draw the part, you check it in 3D on a private page, and the quote is agreed before anything is cut.
Can our logo go on the bracket?
Yes. A logo or marking can be engraved into the face, and the bracket can get a painted finish sprayed in our own spray room. Send the artwork with your drawing and tell us the colours you need.
Ask for one like this
Tell us what you need, the size and how many. We reply personally to every request.
